Specifications

557062

557059（中国销售）

Certifications

CE

CE

Control Modes

Volume or Pressure Assist

Volume or Pressure Assist

Depth English

17.25 in

17.25 in

Depth Metric

43.8 cm

43.8 cm

Display

2 line x 20 character VFD display

2 line x 20 character VFD display

External Trigger

+5 to +12 V peak pulse

+5 to +12 V peak pulse

Gas Supply

Room air or non-flammable mixed gas

Room air or non-flammable mixed gas

Height English

8.0 in

8.0 in

Height Metric

20.3 cm

20.3 cm

I E Ratio

1:4 to 4:1 %

1:4 to 4:1 %

Inspiratory Flow

0 to 12 SLPM

0 to 12 SLPM

Inspiratory Hold Time Full Range

1 to 120 sec

Not available

Inspiratory Hold Time Safe Range

1 to 60 sec

Not available

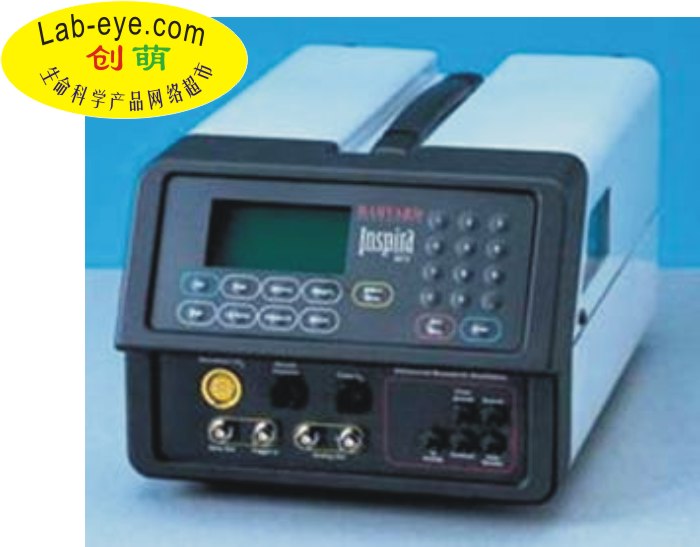

Model

Inspira ASVP-IH

Inspira ASVP

Net Weight English

20 lb

20 lb

Net Weight Metric

9.1 kg

9.1 kg

Number of Animals

1

1

PEEP

Built in machine

Built in machine

Port Size English OD

1/16, 1/8, 5/32 or 3/16 in adjustable

1/16, 1/8, 5/32 or 3/16 in adjustable

Port Size OD Metric

1.75, 3.5, 4.1 or 5 mm adjustable

1.75, 3.5, 4.1 or 5 adjustable

Pressure Range

0 to 50 cmH2O

0 to 50 cmH2O

Pressure Signal

0 to 5 V Analog

0 to 5 V Analog

Pressure Signal Note

(representing 0 to 50 cmH20)

(representing 0 to 50 cmH20)

Resolution

1 breath/min

1 breath/min

Respiration Rate Maximum

200 breaths/min

200 breaths/min

Respiration Rate Minimum

5 breaths/min

5 breaths/min

Respiratory Assist

Available

Available

Sigh Frequency

Auto or manual

Auto or manual

Sigh Pressure

0 to 50 cmH2O

0 to 50 cmH2O

Signal Inputs

External trigger

External trigger

Signal Output

Sync out, 2 analog outputs (user selectable)

Sync out, 2 analog outputs (user selectable)

Species

Mice, Rats, Guinea Pigs, Rabbits, Cats

Mice, Rats, Guinea Pigs, Rabbits, Cats

Tidal Volume Maximum

100 ml/stroke

100 ml/stroke

Tidal Volume Minimum

0.1 ml/stroke

0.1 ml/stroke

Voltage Range

170 to 264 V, AC 85 to 132 V, 50/60 Hz

170 to 264 V, AC 85 to 132 V, 50/60 Hz

Weight Range Maximum

10 kg

10 kg

Weight Range Minimum

15 g

15 g

Width English

10.0 in

10.0 in

Width Metric

25.4 cm

25.4 cm
