Bio-Rad Mini-Protean小垂直板电泳槽介绍

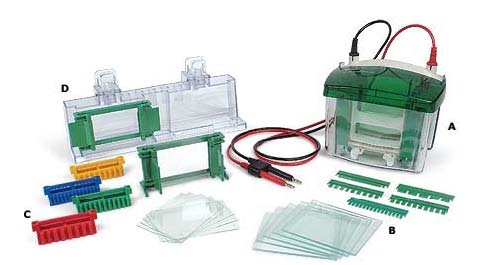

该电泳系统有四部分组成：A电泳槽外壳、相对应的模块、缓冲液槽和盖；B玻璃板和梳子；C加样引导器；D制胶支架和制胶框。该系统设计特点是功能灵活，即可以做普通的蛋白电泳、Western印迹，又可以做电洗脱和双向凝胶电泳。另外制胶简便，大大节约了整个电泳的时间。
功能多样使用简便的 Mini-PROTEAN® Tetra 电泳槽是进行小型垂直电泳的理想选择。电泳槽可容纳 1－4 块手灌胶或 Ready Gel 预制胶，您可以根据科研的需求灵活的进行选择。Mini-PROTEAN® Tetra 电泳槽省去了冗长的组装程序，具有封盖装置，可防止错误组装。
Mini-PROTEAN® Tetra 电泳槽特点和优势
- 一小时内完成多达四块小型胶电泳
- 还可选配 Mini Trans-Blot® 电泳转印槽进行 western 转印
- 软橡胶垫片与玻板形成严密的密封以确保无泄漏灌胶
- 带有简单凸轮的灌制框**确保在任何平面上实现对齐
- 平行排列的灌胶架**能同时灌制两块凝胶，弹簧杠杆设计使得软橡胶沉淀产生良好的密封性
- 一天内完成双向凝胶电泳
Mini-PROTEAN® Tetra 电泳槽应用
- 聚丙烯酰胺凝胶电泳（PAGE 或 SDS-PAGE）
- 双向凝胶电泳
- 筛选新样本
- 评估样本制备条件
Mini-PROTEAN® Tetra 电泳槽更多信息
您可定购以下固定配置货号165-8000（10 孔梳，0.75 mm 玻板）或 165-8001（10 孔梳，1.0 mm 玻板）。有关打包配置信息可以致电：021-55150386。 需要配置您自己的电泳槽，请定购 Mini-PROTEAN Tetra （货号 165-8004），然后选购不您实验需求的电泳模块。
Mini-PROTEAN® Tetra 电泳槽技术参数
|
凝胶数
|
1–4
|
|
预制胶
|
Mini-PROTEAN® 预制胶
|
|
手灌胶
|
使用 Mini-PROTEAN 玻板灌制
|
|
凝胶尺寸（宽 x 长）
|
预制： 8.6 x 6.8；手灌： 8.3 x 7.3
|
|
玻璃板尺寸
|
|
|
短板
|
10.1 x 7.3
|
|
玻板
|
10.1 x 8.2
|
|
2 块凝胶的缓冲液总体积，ml
|
700 ml
|
|
4 块凝胶的缓冲液总体积，ml
|
1,000 ml
|
|
SDS-PAGE 典型运行时间
|
35–45 分钟（在 200 V 恒定电压下）
|
|
推荐的电源
|
PowerPac™ Basic 或 PowerPac HC（大电流）
|
|
尺寸（宽 x 长 x 高），cm
|
12 x 16 x 18
|
|
重量，kg/lb
|
1.0/2.2
|
|
凝胶格式
|
小型
|
Mini-PROTEAN® Tetra Cell 电泳梳每孔中的最多样品量
|
孔数或孔类型
|
孔宽度
|
梳厚度
|
|
0.75 mm
|
1.0 mm
|
1.5 mm
|
|
5
|
12.70 mm
|
70 µl
|
105 µl
|
160 µl
|
|
9
|
5.08 mm
|
33 µl
|
44 µl
|
66 µl
|
|
10
|
5.08 mm
|
33 µl
|
44 µl
|
66 µl
|
|
15
|
3.35 mm
|
20 µl
|
26 µl
|
40 µl
|
|
IPG
|
6.20 mm
|
—
|
420 µl
|
730 µl
|
|
Prep/2-D
|
|
|
|
|
|
参考孔
|
3.10 mm
|
13 µl
|
17 µl
|
30 µl
|
|
样品孔
|
67.44 mm
|
310 µl
|
400 µl
|
680 µl
|
Mini-PROTEAN® Tetra 电泳槽订购信息：
|
Mini-PROTEAN® Tetra Cell - 1658000
4-gel vertical electrophoresis system, 0.75 mm gel thickness, includes companion module, 2 casting stands, 4 casting frames, 10-well combs, 5 short plates, and 5 spacer plates |
|
Mini-PROTEAN® Tetra Cell - 1658001
4-gel vertical electrophoresis system, 1.0 mm gel thickness, includes companion module, 2 casting stands, 4 casting frames, 10-well combs, 5 short plates, and 5 spacer plates |
|
|
|
|
|
Mini-PROTEAN® Tetra Cell - 1658002
2-gel vertical electrophoresis system, 0.75 mm gel thickness, includes casting stand, 2 casting frames, 10-well combs, 5 short plates, and 5 spacer plates |
|
Mini-PROTEAN® Tetra Cell - 1658003
2-gel vertical electrophoresis system, 1.0 mm gel thickness, includes casting stand, 2 casting frames, 10-well combs, 5 short plates, and 5 spacer plates |
|
|
|
|
|
Mini-PROTEAN® Tetra Cell - 1658006
4-gel vertical electrophoresis system, 1.5 mm gel thickness, includes companion module, 2 casting stands, 4 casting frames, 10-well combs, 5 short plates, and 5 spacer plates |
|
Mini-PROTEAN® Tetra Cell - 1658007
2-gel vertical electrophoresis system, 1.5 mm gel thickness, 1 casting stand, 2 casting frames, 10-well combs, 5 sets of glass plates |
|
|
|
|
 |
Mini-PROTEAN® Tetra Vertical Electrophoresis Cell for Mini Precast Gels, 4-gel 1658004
4-gel vertical electrophoresis system, includes electrode assembly, companion running module, tank, lid with power cables, mini cell buffer dam |
 |
Mini-PROTEAN® Tetra Vertical Electrophoresis Cell for Mini Precast Gels, 2-gel 1658005
2-gel vertical electrophoresis system, includes electrode assembly, tank, lid with power cables, mini cell buffer dam |
| |
|
|
|
 |
Mini-PROTEAN® Vertical Electrophoresis Cell, 4-gel, for Mini Precast Gels with Mini Trans-Blot® Module
1658030
Electrophoresis and blotting system for precast gels, includes 4-gel system (#165-8004) and blotting module (#170-3935) |
 |
Mini-PROTEAN® Tetra Vertical Electrophoresis Cell for Mini Precast Gels, with Mini Trans-Blot® Module and PowerPac™ Basic Power Supply
1658034
Electrophoresis and blotting system for precast gels, 4-gel system (#165-8004), blotting module (#170-3935) without lower buffer tank and lid, includes PowerPac Basic Power Supply (#164-5050) |
|
|
|
|
 |
Mini-PROTEAN® Tetra Vertical Electrophoresis Cell for Mini Precast Gels, 4-gel, Mini Trans-Blot® Module, and PowerPac™ HC Power Supply
1658036
Electrophoresis and blotting system for precast gels, 4-gel system (#165-8004), blotting module (#170-3935) without lower buffer tank and lid, includes PowerPac High-Current Power Supply (#164-5052) |
 |
Mini-PROTEAN® Tetra Cell, Mini Trans-Blot® Module, and PowerPac™ Basic Power Supply
1658033
Electrophoresis and blotting system, 10-well, 1.0 mm, 4-gel system (#165-8001) and blotting module (#170-3935) without lower buffer tank and lid, includes power supply (#164-5050) |
配件耗材：
 |
Mini-PROTEAN® Tetra Cell Casting Stand with Clamp Kit for 2 Core System
1658051
Pkg of 1, includes 2 stands, 4 frames, 4 gaskets, and 5 gel releasers, for use with the Mini-PROTEAN Tetra cell casting modules |
 |
Mini-PROTEAN® Tetra Cell Casting Stand with Clamp Kit for Single Core System
1658052
Pkg of 1, includes 1 stand, 2 frames, 2 gaskets, and 5 gel releasers, for use with the Mini-PROTEAN Tetra cell casting modules, |
 |
Mini-PROTEAN® Tetra Cell Casting Module
1658008
5-well, 0.75 mm gel casting module, includes 2 casting stands, 4 casting frames, 5 combs, 5 short plates and 5 spacer plates |
 |
Mini-PROTEAN® Tetra Cell Casting Module
1658009
9-well, 0.75 mm gel casting module, includes 2 casting stands, 4 casting frames, 5 combs, 5 short plates and 5 spacer plates, sample loading guide |
 |
Mini-PROTEAN® Tetra Cell Casting Module
1658010
10-well, 0.75 mm gel casting module, includes 2 casting stands, 4 casting frames, 5 combs, 5 short plates and 5 spacer plates, sample loading guide |
 |
Mini-PROTEAN® Tetra Cell Casting Module
1658011
15-well, 0.75 mm gel casting module, includes 2 casting stands, 4 casting frames, 5 combs, 5 short plates and 5 spacer plates, sample loading guide |
 |
Mini-PROTEAN® Tetra Cell Casting Module
1658012
Prep/2-D well, 0.75 mm gel casting module, includes 2 casting stands, 4 casting frames, 5 combs, 5 short plates and 5 spacer plates |
 |
Mini-PROTEAN® Tetra Cell Casting Module
1658013
5-well, 1.0 mm gel casting module, includes 2 casting stands, 4 casting frames, 5 combs, 5 short plates and 5 spacer plates |
 |
Mini-PROTEAN® Tetra Cell Casting Module
1658014
9-well, 1.0 mm gel casting module, includes 2 casting stands, 4 casting frames, 5 combs, 5 short plates and 5 spacer plates, sample loading guide |
 |
Mini-PROTEAN® Tetra Cell Casting Module
1658015
10-well, 1.0 mm gel casting module, includes 2 casting stands, 4 casting frames, 5 combs, 5 short plates and 5 spacer plates, sample loading guide |
 |
Mini-PROTEAN® Tetra Cell Casting Module
1658016
15-well, 1.0 mm gel casting module, includes 2 casting stands, 4 casting frames, 5 combs, 5 short plates and 5 spacer plates, sample loading guide |
|
Mini-PROTEAN® Tetra Cell Casting Module
1658017
Prep/2-D well, 1.0 mm gel casting module, includes 2 casting stands, 4 casting frames, 5 combs, 5 short plates and 5 spacer plates |
 |
Mini-PROTEAN® Tetra Cell Casting Module
1658018
ReadyStrip™ IPG strip well, 1.0 mm gel casting module, includes 2 casting stands, 4 casting frames, 5 combs, 5 short plates and 5 spacer plates |
|
Mini-PROTEAN® Tetra Cell Casting Module
1658019
5-well, 1.5 mm gel casting module, includes 2 casting stands, 4 casting frames, 5 combs, 5 short plates and 5 spacer plates |
| |
Mini-PROTEAN® Tetra Cell Casting Module
1658020
9-well, 1.5 mm gel casting module, includes 2 casting stands, 4 casting frames, 5 combs, 5 short plates and 5 spacer plates, sample loading guide |
|
Mini-PROTEAN® Tetra Cell Casting Module
1658021
10-well, 1.5 mm gel casting module, includes 2 casting stands, 4 casting frames, 5 combs, 5 short plates and 5 spacer plates, sample loading guide |
| |
Mini-PROTEAN® Tetra Cell Casting Module
1658022
15-well, 1.5 mm gel casting module, includes 2 casting stands, 4 casting frames, 5 combs, 5 short plates and 5 spacer plates, sample loading guide |
|
Mini-PROTEAN® Tetra Cell Casting Module
1658023
Prep/2-D well, 1.5 mm gel casting module, includes 2 casting stands, 4 casting frames, 5 combs, 5 short plates and 5 spacer plates |
| |
Mini-PROTEAN® Tetra Cell Casting Module
1658024
ReadyStrip™ IPG strip well, 1.5 mm gel casting module, includes 2 casting stands, 4 casting frames, 5 combs, 5 short plates and 5 spacer plates |
 |
Mini-PROTEAN® Cassette Opening Lever
4560000
Pkg of 1, 100% aluminum and recyclable opening lever for Mini-PROTEAN precast gel cassettes |
 |
Sample Loading Guide
1653132
Pkg of 1, 15-well, sample loading guide, blue |
 |
Sample Loading Guide
1653146
Pkg of 1, 10-well, sample loading guide, yellow |
 |
Sample Loading Guide
1653201
Pkg of 1, 9-well, sample loading guide, red |
 |
Sample Loading Guide
1653203
Pkg of 1, 12-well, sample loading guide, green |
 |
Mini-PROTEAN® Casting Stand
1653303
Pkg of 1, casting stand for Mini-PROTEAN Tetra electrophoresis system and 2 gaskets |
 |
Mini-PROTEAN® Casting Frame
1653304
Pkg of 1, casting frame for Mini-PROTEAN Tetra electrophoresis system |
 |
Mini-PROTEAN® Casting Stand Gaskets
1653305
Pkg of 2, replacement gaskets for casting stand for use with Mini-PROTEAN Tetra electrophoresis system |
 |
Mini-PROTEAN® Tetra Electrode Assembly
1658037
Pkg of 1, replacement electrodes, for use with Mini-PROTEAN Tetra cell |
 |
Mini-PROTEAN® Tetra Companion Running Module
1658038
Pkg of 1, replacement part, for use with Mini-PROTEAN Tetra cell |
 |
Buffer Tank
1658039
Pkg of 1, replacement part, for use with Mini-PROTEAN® Tetra cell |
 |
Buffer Tank and Lid
1658040
Pkg of 1, replacement tank and lid for use with Mini-PROTEAN® Tetra cell |
 |
Cell Lid With Power Cables
1658041
Pkg of 1, replacement part, for use with Mini-PROTEAN® Tetra cell |
 |
Replacement Gaskets
1653149
Pkg of 2, replacement gasket for Mini-PROTEAN® Tetra electrophoresis assembly and Mini-PROTEAN 3 clamping frame, green |
 |
Mini Cell Buffer Dams
1653130
Pkg of 2, buffer dams for use with Mini-PROTEAN® Tetra and Mini-PROTEAN® Dodeca™ electrophoresis systems |
 |
Gel Releasers
1653320
Pkg of 5, gel releaser for Mini-PROTEAN® Tetra system, Mini-PROTEAN® 3 Dodeca™ cell, Mini-PROTEAN 3 multi-casting chamber, and PROTEAN® Plus Dodeca™ cell |
 |
Mini-PROTEAN® Tetra Cell Casting Stand & Clamps
1658050
Pkg of 1, casting stand with 2 frames, for use with Mini-PROTEAN Tetra cell casting modules (gaskets not included) |
小型垂直电泳玻璃板，厚玻板和薄玻板 又叫 短玻板和长玻板
 |
Short Plates
1653308
Pkg of 5, short plate for Mini-PROTEAN® Tetra system and Mini-PROTEAN 3 multi-casting chamber |
 |
Spacer Plates With 0.75 mm Integrated Spacers
1653310
Pkg of 5, spacer plate with 0.75 mm integrated spacer, for Mini-PROTEAN Tetra system and Mini-PROTEAN® 3 multi-casting chamber |
 |
Spacer Plates With 1.0 mm Integrated Spacers
1653311
Pkg of 5, spacer plate with 1.0 mm integrated spacer, for Mini-PROTEAN Tetra system and Mini-PROTEAN® 3 multi-casting chamber |
 |
Spacer Plates With 1.5 mm Integrated Spacers
1653312
Pkg of 5, spacer plate with 1.5 mm integrated spacer, for Mini-PROTEAN® Tetra system and Mini-PROTEAN 3 multi-casting chamber |
Mini垂直电泳梳子（小型垂直电泳梳子）
 |
Mini-PROTEAN® Comb, 5-well, 1.0 mm, 105 μl
1653357
Pkg of 5, combs for Mini-PROTEAN Electrophoresis Cell, use with 1.0 mm glass plates (165-3311) |
 |
Mini-PROTEAN® Comb, 9-well, 1.0 mm, 44 μl
1653358
Pkg of 5, combs for Mini-PROTEAN Electrophoresis Cell, use with 1.0 mm glass plates (165-3311) |
 |
Mini-PROTEAN® Comb, 10-well, 1.0 mm, 44 μl
1653359
Pkg of 5, combs for Mini-PROTEAN Electrophoresis Cell, use with 1.0 mm glass plates (165-3311) |
 |
Mini-PROTEAN® Comb, 15-well, 1.0 mm, 26 μl
1653360
Pkg of 5, combs for Mini-PROTEAN Electrophoresis Cell, use with 1.0 mm glass plates (165-3311) |
 |
Mini-PROTEAN® Comb, Prep+1 well, 1.0 mm, 400 μl
1653361
Pkg of 5, combs for Mini-PROTEAN Electrophoresis Cell, use with 1.0 mm glass plates (165-3311) |
 |
Mini-PROTEAN® Comb, IPG well, 1.0 mm, 420 μl
1653362
Pkg of 5, combs for Mini-PROTEAN Electrophoresis Cell, use with 1.0 mm glass plates (165-3311) |
 |
Mini-PROTEAN® Comb, 5-well, 1.5 mm, 160 μl
1653363
Pkg of 5, combs for Mini-PROTEAN Electrophoresis Cell, use with 1.5 mm glass plates (165-3312) |
 |
Mini-PROTEAN® Comb, 9-well, 1.5 mm, 66 μl
1653364
Pkg of 5, combs for Mini-PROTEAN Electrophoresis Cell, use with 1.5 mm glass plates (165-3312) |
 |
Mini-PROTEAN® Comb, 10-well, 1.5 mm, 66 μl
1653365
Pkg of 5, combs for Mini-PROTEAN Electrophoresis Cell, use with 1.5 mm glass plates (165-3312) |
 |
Mini-PROTEAN® Combs, 15-well, 1.5 mm, 40 μl
1653366
Pkg of 5, combs for Mini-PROTEAN Electrophoresis Cell, use with 1.5 mm glass plates |
| |
Mini-PROTEAN® Comb, Prep+1 well, 1.5 mm, 680 μl
1653367
Pkg of 5, combs for Mini-PROTEAN Electrophoresis Cell, use with 1.5 mm glass plates (165-3312) |
 |
Mini-PROTEAN® Comb, IPG well, 1.5 mm, 730 μl
1653368
Pkg of 5, combs for Mini-PROTEAN Electrophoresis Cell, use with 1.5 mm glass plates (165-3312) |
 |
Mini-PROTEAN® Comb, 5-well, 0.75 mm, 70 μl
1653352
Pkg of 5, combs for Mini-PROTEAN Electrophoresis Cell, use with 0.75 mm glass plates (165-3310) |
 |
Mini-PROTEAN® Comb, 9-well, 0.75 mm, 33 μl
1653353
Pkg of 5, combs for Mini-PROTEAN Electrophoresis Cell, use with 0.75 mm glass plates (165-3310) |
 |
Mini-PROTEAN® Comb, 10-well, 0.75 mm, 33 μl
1653354
Pkg of 5, combs for Mini-PROTEAN Electrophoresis Cell, use with 0.75 mm glass plates (165-3310) |
 |
Mini-PROTEAN® Comb, 15-well, 0.75 mm, 20 μl
1653355
Pkg of 5, combs for Mini-PROTEAN Electrophoresis Cell, use with 0.75 mm glass plates (165-3310) |
 |
Mini-PROTEAN® Comb, Prep+1 well, 0.75 mm, 310 μl
1653356
Pkg of 5, combs for Mini-PROTEAN Electrophoresis Cell, use with 0.75 mm glass plates (165-3310) |
|
|
|
