UVP CL-1000紫外交联仪 |
|
仪器介绍

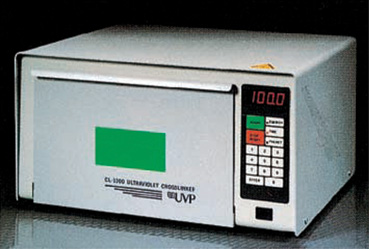

美国UVP厂家生产的CL-1000型紫外交联仪外观小巧，内腔宽敞，它运用紫外短波能量，既可用于核酸的膜固定、EB染色的D皿.缺刻，又能用于recA功能检测、紫外杀菌、PCR污染消减，同时还能利用胸腺喀 二聚体抑制切割进行基因作图等方面。
主要特点
1、可预设或手动调节紫外强度和曝光时间
2、瓜水显示时间/能量
3、触摸屏控制，操作简便
4、5个254nm的短波紫外灯管
5、紫外安全门锁设计
6、紫外安全视窗
CL－1000型 254nm 紫外灯管
CL-1000L型365nm 紫外灯管 主要用于UV修复和免疫研究
CL-1000M型302nm 紫外灯管 主要用于UV修复、UV交联和梯度样品
技术参数
1、紫外强度：强度和时间均可调，皿能量设置可达999,900mj/cm2
2、功率：8瓦特
3、体积：外壁尺寸:13.75Dx15.75Wx8.75Hin (349x400x222mm)
内壁尺寸:12Dx10Wx5Hin. （305x254x127mm）
4、重量：15.51bs（7.5ks）
5、曝光时间：曝光时间可达999.9分钟
Ultraviolet Crosslinkers
Chamber supplies uniform intensity overhead UV exposure of materials. The CL-1000 model is an exposure instrument, which utilizes shortwave ultraviolet energy to bond the DNA to a medium. |
Applications
- Shortwave 254nm UV:
UV crosslinking membranes
- Longwave 365nm UV:
UV curing, non-destructive testing
- Midrange 302nm UV:
Photochemical reactions, UV crosslinking
|
Main Features
- Small footprint for benchtop use
- Preset and manual controls for ultraviolet or time exposures
- Preset exposure delivers 120,000 microjoules or five minutes of exposure
- Microprocessor measures and control UV output, ensuring maximum energy efficiency
- Large LED display and touch panel which displays time or energy settings
- Window on the door allows viewing of the process yet blocks out the UV radiation
- Select from models with 302nm midrange UV, 365nm longwave UV or 254nm shortwave UV
- Overhead UV supplies uniform UV
- Shortwave UV model is available with choice of door (CL-1000) or drawer (CX-2000) styles
- Built-in UV sensor is calibrated at the UVP factory to ensure accuracy and reliability
- Crosslinking for attaching nucleic acids to a membrane takes seconds as compared to oven baking
Specifications
Display: |
LED |
| Controls: |
Touch pad |
| UV exposure output: |
120,000 microjoules or 5 minutes (adjustable); maximum UV energy setting of 999,900 microjoules per cm2 |
|
|
| Watts: |
8 watt |
| UV Source: |
·CL-1000 254nm
·CL-1000M 302nm
·CL-1000L 365nm
·CX-2000 254nm |
Dimensions:
CL-1000 models |
Exterior: |
13.7D x 15.6W x 8.75H in. (248 x 396 x 222mm) |
| |
Interior: |
12D x 10W x 5H in. (305 x 254 x 127mm) |
Dimensions:
CX-2000 models |
Exterior: |
17.5W x 15D x 9.75H in. (445 x 381 x 248mm) |
| |
Interior: |
11.4W x 11.3D x 3.6H in. (290 x 287 x 91mm)
|
| Sample Tray: |
11.25D x 11.5W in. (286 x 292mm)
Sample surface to lamp approximately 3.5 in. (89mm) |
Download Brochure
| Part Numbers |
Model |
115V |
230V |
Wavelength |
Replacement Tubes |
CL-1000 |
95-0174-01 |
95-0174-02 |
254nm |
34-0007-01 |
CL-1000L |
95-0228-01 |
95-0228-02 |
365nm |
34-0006-01 |
CL-1000M |
95-0230-01 |
95-0230-02 |
302nm |
34-0042-01 |
CX-2000 |
95-0339-01 |
95-0339-02 |
254nm |
34-0007-01 |
|
|
进口|品牌 紫外交联仪
| 编号 |
型号 |
产品名称+规格 |
元/台 |
备注说明 |
| 001 |
CX-2000 |
美国UVP CX-2000紫外交联仪 |
32000.00 |
详细资料 |
| 002 |
CL-1000 |
美国UVP CL-1000紫外交联仪 |
32000.00 |
详细资料 |
| 003 |
TL-2000 |
美国UVP TL-2000紫外交联/紫外透射仪是CL-1000紫外交联仪和M-20E紫外透射仪的组合 |
48000.00 |
技术参数 |
| |
|
|
|
|
国产|品牌 紫外交联仪
| 编号 |
型号 |
产品名称+规格 |
元/台 |
备注说明 |
| 01 |
03-II |
03-II紫外交联仪 |
11000.00 |
详细资料 |
| |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
|
|
