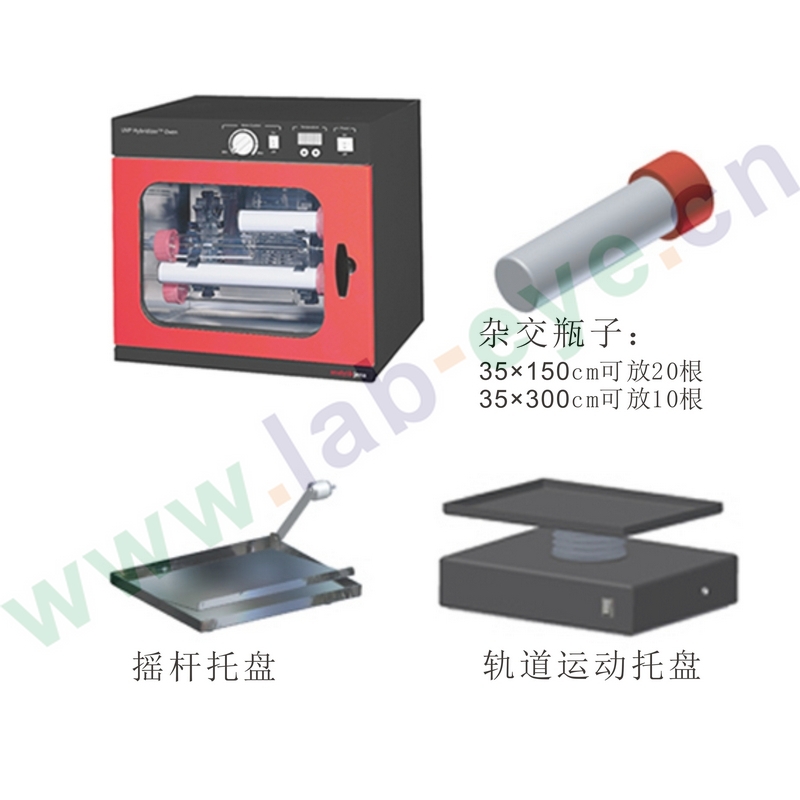

| 美国UVP经济型HB-1000Hybridizer分子杂交仪（炉、箱） |
 |
仪器介绍
美国UVP HB-1000型杂交炉是一种“经济型”的仪器，为核酸的杂交提供一个理想的空间环境，便于在设定温度下充分混合。
主要特点
1、微处理器允许准确选择温度控制（环境温度为+ 10°C至99.9°C）
2、转盘的变速控制（10到15转/分钟）可以使样品保持一致的饱和度，无论是洗涤还是杂交
3、可调节的RPM旋钮让您减慢旋转轮以取出样品
4、显示腔内当前温度的大型LCD位于用于温度控制的触摸键盘上方
5、旋转轮可以拆下，并换成一个可更换的摇臂板，使所有的杂交协议在一个台式单元
6、可拆卸的保护托盘可以轻松清理溢出的介质
7、旋转轮可容纳二十（20）个35×150mm或十（10）个35×300mm或瓶子的组合
8、使用多种瓶子尺寸，排列和偏移瓶子定位
9、不锈钢内部结构可以很容易清洗
10、可选摇臂板允许使用各种类型的烧瓶
Main Features
- Microprocessor allows precise selection of temperature control (ambient to +10°C to 99.9°C)
- Variable speed control (10 to 15 RPM) of the carousel enables consistent saturation of samples, whether for washing or hybridizing
- Adjustable RPM knob lets you slow down the rotary wheel for removal of samples
- A large LCD, which displays the current temperature inside the chamber, is situated above a touch sensitive key pad for temperature control
- The rotary wheel can be removed and replaced with an interchangeable rocker plate enabling all hybridization protocols in one benchtop unit
- Removable protective tray allows easy cleanup of spilled media
- The rotary wheel can hold twenty (20) 35 x 150mm or ten (10) 35 x 300mm or combination of bottles
- Use multiple bottle sizes, arrangements and off-set bottle positioning
- Stainless steel internal construction can be cleaned easily
- Optional rocker plate allows use of various types of flasks
技术参数
1. 温度显示：LED
2. 功率：1250瓦特
3. 体积：内部10.75D x 14W x 10.75H in. (273 x 356 x 273mm)；外部16D x 17.5W x 16H in. (406 x445 x406mm)
4. 电源：12V AC/DC 来至于115V/60Hz或230V/50Hz
5. 温度范围：10℃-99.9℃
6. 温控精度：±0.1
7. 温度均一性：箱内 ±0.3℃；瓶内：±0.1℃
8. 速率：10-15rpm
9. 容量：20个35x150mm杂交瓶；10个35x300mm杂交瓶
10.转轮速率：7-14循环/秒
Specifications
| Hybridizer UVP Hybridizer |
| Variable Speed |
10 to 15 RPM |
| Heating Element |
1250 watts |
| Operation Range |
Ambient to +10°C to 99.9°C |
| Temperature Accuracy |
±0.5°C - 68°C |
| Temperature Display |
LCD |
Temperature Stability
|
Inside Oven: ±0.3°C to 68°C
Inside Bottles: ±0.1°C to 68°C |
Temperature Uniformity
|
Inside Oven: ±0.1°C to 68°C
Inside Bottles: ±0.1°C to 68°C |
| Bottle Capacity |
Twenty (20) 35 x 150 mm or
Ten (10) 35 x 300 mm |
| Power |
115V/60Hz or 230V/50Hz |
| Dimensions |
Interior: 14W x 10.75H x 10.75:D in.(356 x 273 x 273mm)
Exterior: 17.5W x 16H x 16D in. (445 x 406 x 381mm) |
Options
Orbital Motion Tray:
The tray provides continuous movement for thorough mixing of samples in flasks or other containers. The tray plugs into the chamber and is controlled by the power switch.
Orbital Motion Tray: 98-0067-04
Maximum Load: 3 lbs.
Rotation Speed: 30 rpm @ 2° angle
Dimensions:
Tray: 10"W x 6.5"D
Overall: 10.3"W x 8.2"D x 4.5"H
For use of the orbital tray outside the ovens, order the following:
Orbital Motion Tray, external, stand-alone, 100/115V: 98-0067-05
Orbital Motion Tray, external, stand-alone, 230V: 98-0067-06
Rocker Tray: 98-0067-03
The optional Rocker Tray provides a rocking motion and designed to accommodate various types of flasks in the UVP Hybridizer. The tray moves at 7 cycles/min and up to 14 cycles/min on the highest speed. The tray rocks at 12 degrees total (+6 degrees). To use the plate, remove the rotary wheel from oven and connect the rocker plate arm to the motor controls.
Bottles: Small bottles are made of lead-free borosilicate glass with a polypropylene cap and PTFE seal. Bottles have excellent long-term reliability.
Bottle, 35 x 150 |
07-0194-01 |
Bottle, 35 x 300 |
07-0194-02 |
Ordering information
| Part Numbers |
| 115V |
230V |
Model |
| 95-0030-01 |
95-0030-02 |
UVP Hybridizer |
| 98-0067-04 |
Orbital Tray |
| 98-0067-05 |
98-0067-06 |
Orbital Motion Tray, external, stand-alone |
| 07-0194-01 |
Bottle, 35 x 150 |
| 07-0194-02 |
Bottle, 35 x 300 |
| 98-0067-03 |
Rocker Tray |
| 76-0053-01 |
Rocker plate, removable, stainless steel construction
(for units prior to 10/2003) |
|
