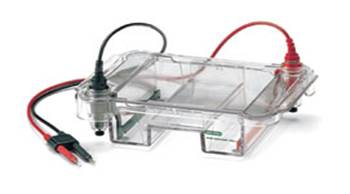

重新设计的宽型 Mini-Sub cell GT 电泳槽提供了更新功能，可使电泳分离更加容易。 宽式 Mini-Sub cell GT 电泳槽适用于多样本快速筛选应用。 这个受欢迎的系统有一个宽阔的平台，每梳可以分离 30 个样本。 宽式 Mini-Sub cell GT 槽与 Sub-Cell GT 槽宽度相同，因此梳支架、电泳梳和 15 x 10 cm 凝胶托盘可与更大的 Sub-Cell GT 装置互换使用。
所有宽 Mini-Sub cell GT 系统都可容纳 ReadyAgarose 预制胶以节省时间并允许进行高度可重复的分离。 这些电泳槽包括一个缓冲液槽、一个带电缆的安全盖和一个水准气泡。 还提供了包括其他附件的系统配置；有关更多详细信息，请参见“宽式 Mini-Sub Cell GT 完整系统选择指南”。
功能：
- QuickSnap* 电极拆卸方便，简化了清洁工作
- 底座侧面的箭头指示运行方向，可确保凝胶的方向正确
- 彩色编码的带标记的电极和带标记的底座确保盖子可以正确安置在底座上
- 通过基部上的拉环，可轻松移除盖子，从而减少缓冲液溢出量，还可防止盖位置不正确
- 反向兼容设计允许将这些电泳槽用于较早型号的组件
- 透明塑料结构，可以方便地查看样本
- 具有荧光标尺的紫外透明凝胶托盘**
- 用于直接在槽中灌制您自己的凝胶的凝胶灌制口，或者用于无胶条式灌制的可选制胶盘**
- 可满足一切需求的梳（与多通道吸管兼容的梳、高度固定的嵌入式梳、可调节高度的梳和制备梳）**
宽 Mini ReadySub-Cell GT Cell
宽式迷你 ReadySub-Cell GT 电泳槽与 Mini-Sub cell GT 电泳槽相同，只不过它专用于运行 ReadyAgarose 预制胶。 这些凝胶可牢固锁室到宽式迷你 ReadySub-Cell 室中，操作方便且具有可重复性。 此电泳槽不包括灌注口、样本盘或电泳梳。
** 请单独购买 ReadySub-Cell GT 系统。
宽 Mini-Sub Cell GT 完整系统
| |
|
|
UVTP 托盘 (cm) |
梳 |
PowerPac Basic
电源 |
| 货号 |
灌制口 |
制胶盘 |
15 x 7* |
15 x 10 |
15 孔 |
20 孔 |
| 宽 Mini-Sub Cell GT 系统 |
| 170-4405 |
• |
|
• |
|
• |
• |
|
| 170-4468 |
|
|
|
• |
• |
• |
|
| 170-4485 |
• |
• |
• |
|
• |
• |
|
| 170-4469 |
|
• |
|
• |
• |
• |
|
| 164-0301 |
|
• |
|
• |
• |
• |
• |
| 170-4489 |
|
|
|
|
|
|
|
| 164-0304 |
|
|
|
|
|
|
• |
* 允许使用浇注口在电泳槽中浇注凝胶；可使用制胶盘灌注 15 x 10 cm 凝胶。
宽 Mini-Sub Cell 电泳梳选择指南
| 货号 |
孔数量 |
高度* |
厚度 |
宽度孔 |
长度牙齿 |
体积
（在 5 mm 深凝胶中） |
| 宽式 Mini-Sub Cell GT 系统的梳** |
| 170-4449 |
30 |
固定 |
1.5 mm |
2.7 mm |
14 mm |
20.25 µl |
| 170-4344 |
30 |
可调 |
1.5 mm |
2.7 mm |
19.1 mm |
20.25 µl |
| 170-4447 |
20 |
固定 |
0.75 mm |
5 mm |
15 mm |
18.75 µl |
| 170-4448*** |
20 |
固定 |
1.5 mm |
5 mm |
15 mm |
37.5 µl |
| 170-4321 |
20 |
可调 |
0.75 mm |
4.8 mm |
19.1 mm |
17 µl |
| 170-4322 |
20 |
可调 |
1.5 mm |
4.8 mm |
19.1 mm |
34 µl |
| 170-4445 |
15 |
固定 |
0.75 mm |
6 mm |
15 mm |
22.5 µl |
| 170-4446*** |
15 |
固定 |
1.5 mm |
6 mm |
15 mm |
45 µl |
| 170-4323 |
15 |
可调 |
0.75 mm |
5.5 mm |
19.1 mm |
21 µl |
| 170-4324 |
15 |
可调 |
1.5 mm |
5.5 mm |
19.1 mm |
42 µl |
| 170-4443 |
10 |
固定 |
0.75 mm |
10 mm |
14 mm |
37.5 µl |
| 170-4444 |
10 |
固定 |
1.5 mm |
10 mm |
14 mm |
75 µl |
| 170-4325 |
10 |
可调 |
0.75 mm |
9.9 mm |
19.1 mm |
37 µl |
| 170-4326 |
10 |
可调 |
1.5 mm |
9.9 mm |
19.1 mm |
74 µl |
* 固定高度电泳梳必须与 GT 凝胶托盘一起使用。 可调节高度的梳需具备梳支架，目录编号为 170-4320。
** 宽式 Mini-Sub Cell GT 电泳槽的电泳梳可与 Sub-Cell GT 电泳槽一起使用，反之亦然。
*** 系统中附含电泳梳。
技术参数：
| 电泳槽尺寸（宽 x 长 x 高） |
17.8 x 25.5 x 6.8 厘米 |
| 凝胶托盘尺寸 (OD)（宽 x 长） |
15 x 7 厘米
15 x 10 厘米 |
| 是否支持 ReadyAgarose 凝胶 |
是，宽迷你和 96 Plus 格式 |
| 样本通量 |
10–60 |
| 基本缓冲液需要量 |
~650 ml |
| 缓冲液再循环 |
否 |
| 溴酚蓝迁移 |
~4.5 cm/hr（75 V 下） |
订购信息：
 |
Wide Mini-Sub Cell GT System 1704405
Horizontal electrophoresis system, includes 15- and 20-well combs, 15 x 7 cm UV-transparent tray, casting gates |
|
Wide Mini-Sub® Cell GT System 1704468
Horizontal electrophoresis system, includes 15- and 20-well combs, 15 x 10 cm UV-transparent tray |
|
|
|
|
| |
Wide Mini-Sub Cell GT System 1704485
Horizontal electrophoresis system, includes 15- and 20-well combs, 15 x 7 cm UV-transparent tray, casting gates, mini-gel caster |
 |
Wide Mini-Sub Cell GT Cell and PowerPac Basic Power Supply 1640301
Wide horizontal electrophoresis system, includes 15- and 20-well combs, gel caster, 15 x 10 cm UV-transparent tray, basic power supply (#164-5050) |
|
|
|
|
| |
Wide Mini ReadySub-Cell GT Cell 1704489
Horizontal electrophoresis cell, includes lid and electrodes; accommodates 20-, 32-, and 2 x 32-well wide mini ReadyAgarose gels |
|
Wide Mini ReadySub-Cell GT Cell and PowerPac Basic Power Supply 1640304
Horizontal electrophoresis system for wide mini ReadyAgarose precast gels, includes basic power supply (#165-5050) |
配件：
 |
Wide Mini Handcasting Kit 1704497
Agarose wide mini-gel casting kit, includes 15 x 7 cm tray, casting gates, 15- and 20-well 1.5 mm fixed-height combs |
 |
Mini-Gel Caster 1704422
Pkg of 1, gel caster for use with Mini-Sub and wide Mini-Sub cell GT systems |
|
|
|
|
 |
Sub-Cell GT UV-Transparent Wide Mini-Gel Tray 1704426
Pkg of 1, 15 x 7 cm gel tray, 2 slots for fixed-height combs, for use with wide Mini-Sub cell GT systems |
 |
Sub-Cell GT UV-Transparent Gel Tray 1704416
Pkg of 1, 15 x 10 cm gel tray, 2 slots for fixed-height combs; can be used with wide Mini-Sub cell GT cell, compatible with DNA Sub-Cell system |
|
|
|
|
 |
Wide Mini-Sub Cell GT Casting Gates 1704425
Pkg of 2, horizontal agarose gel electrophoresis casting gates, for use with wide Mini-Sub cell GT systems |
 |
Wide Mini-Sub Cell GT Anode (Red), QuickSnap Electrode Assembly 1704372
Pkg of 1, electrode assembly for use with wide Mini-Sub cell GT systems, 2009 model |
|
|
|
|
 |
Wide Mini-Sub Cell GT Cathode (Black), QuickSnap Electrode Assembly 1704373
Pkg of 1, electrode assembly for use with wide Mini-Sub cell GT systems, 2009 model |
 |
Wide Mini-Sub Cell GT Anode (Red) Electrode Assembly 1704423
Pkg of 1, electrode assembly for use with wide Mini-Sub cell GT systems |
|
|
|
|
 |
Wide Mini-Sub Cell GT Cathode (Black) Electrode Assembly 1704424
Pkg of 1, electrode assembly for use with wide Mini-Sub cell GT systems |
 |
Comb Holder 1704320
Pkg of 1, horizontal electrophoresis comb holder, for use with Sub-Cell and wide Mini-Sub cell adjustable-height combs |
梳子：
 |
30-Well Comb 1704449
Pkg of 1, 14 cm wide, 1.5 mm thick, fixed-height comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray |
 |
30-Well Comb 1704344
Pkg of 1, 14 cm wide, 1.5 mm thick, adjustable-height comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, requires comb holder (#170-4320) |
|
|
|
|
 |
20-Well Comb 1704447
Pkg of 1, 14 cm wide, 0.75 mm thick, fixed-height comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray |
 |
20-Well Comb 1704448
Pkg of 1, 14 cm wide, 1.5 mm thick, fixed-height comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray |
|
|
|
|
 |
20-Well Comb 1704321
Pkg of 1, 14 cm wide, 0.75 mm thick, adjustable-height comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, requires comb holder (#170-4320) |
 |
20-Well Comb 1704322
Pkg of 1, 14 cm wide, 1.5 mm thick, adjustable-height comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, requires comb holder (#170-4320) |
|
|
|
|
 |
15-Well Comb 1704445
Pkg of 1, 14 cm wide, 0.75 mm thick, fixed-height comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray |
 |
15-Well Comb 1704446
Pkg of 1, 14 cm wide, 1.5 mm thick, fixed-height comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray |
|
|
|
|
 |
15-Well Comb 1704323
Pkg of 1, 14 cm wide, 0.75 mm thick, adjustable-height comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, requires comb holder (#170-4320) |
 |
15-Well Comb 1704324
Pkg of 1, 14 cm wide, 1.5 mm thick, adjustable-height comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, requires comb holder (#170-4320) |
|
|
|
|
 |
10-Well Comb 1704443
Pkg of 1, 14 cm wide, 0.75 mm thick, fixed-height comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray |
 |
10-Well Comb 1704444
Pkg of 1, 14 cm wide, 1.5 mm thick, fixed-height comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray |
|
|
|
|
 |
10-Well Comb 1704325
Pkg of 1, 14 cm wide, 0.75 mm thick, adjustable-height comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, requires comb holder (#170-4320) |
 |
10-Well Comb 1704326
Pkg of 1, 14 cm wide, 1.5 mm thick, adjustable-height comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, requires comb holder (#170-4320) |
|
|
|
|
 |
Preparative Comb for Sub-Cell and Wide Mini-Sub Cell Systems 1704442
Pkg of 1, 1.5 mm thick, preparative comb with 4 preparative and 2 reference wells, fixed height, must use with GT gel tray |
 |
Preparative Comb for Sub-Cell and Wide Mini-Sub Cell Systems 1704441
Pkg of 1, 1.5 mm thick, preparative comb with 2 preparative and 2 reference wells, adjustable height |
|
|
|
|
 |
Preparative Comb for Sub-Cell and Wide Mini-Sub Cell Systems 1704440
Pkg of 1, 1.5 mm thick, preparative comb with 1 preparative and 2 reference wells, fixed height, must use with GT gel tray |
 |
Preparative Comb for Sub-Cell and Wide Mini-Sub Cell Systems 1704328
Pkg of 1, 3 mm thick, preparative comb with 1 preparative and 2 reference wells, adjustable height, requires comb holder (#170-4320) |
|
|
|
|
 |
Multichannel Pipet–Compatible Comb 1704456
Pkg of 1, 0.75 mm thick, fixed height 26-well comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray |
 |
Multichannel Pipet–Compatible Comb 1704457
Pkg of 1, 1.5 mm thick, fixed height 26-well comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray |
|
|
|
|
 |
Multichannel Pipet–Compatible Comb 1704454
Pkg of 1, 0.75 mm thick, fixed height 18-well comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray |
 |
Multichannel Pipet–Compatible Comb 1704455
Pkg of 1, 1.5 mm thick, fixed height 18-well comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray |
|
|
|
|
 |
Multichannel Pipet–Compatible Comb 1704452
Pkg of 1, 0.75 mm thick, fixed height 14-well comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray |
 |
Multichannel Pipet–Compatible Comb 1704453
Pkg of 1, 1.5 mm thick, fixed height 14-well comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray |
|
|
|
|
 |
Multichannel Pipet–Compatible Comb 1704450
Pkg of 1, 0.75 mm thick, fixed height 10-well comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray |
 |
Multichannel Pipet–Compatible Comb 1704451
Pkg of 1, 1.5 mm thick, fixed height 10-well comb, for use with Sub-Cell and wide Mini-Sub cell GT systems, must use with GT gel tray |
|
